GGBFS

Ground Granulated Blast Furnace Slag


Products > Cementitious Materials > Ground Granulated Blast Furnace Slag (GGBFS)

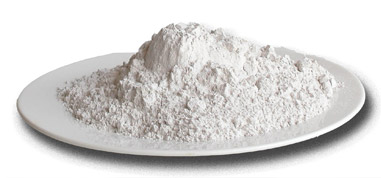

Slag cement or GGBFS is granulated blast-furnace slag that has been finely ground and that is hydraulic cement. When slag cement is mixed with water, however, the initial hydration is much slower than Portland cement mixed with water; therefore, Portland cement or salts of alkali metals, principally sodium and potassium or lime, are used to increase the reaction rate of slag cement (ACI 233R). The ASTM C989 slag-activity index is often used as a basic criterion for evaluating the relative cementitious potential of slag cements.



GGBFS is formed when granulated blast furnace slag (GBFS) is further processed or ground using conventional cement clinker grinding technology. On a casual examination, GGBFS can be off-white in appearance and could pass for a powder fineness typically between 380m2/kg - 420m2/kg. After molten slag has been quenched rapidly by passing it through a trough of high pressure, high volume water sprays, the heat energy contained in the molten slag causes it to explode and instantly form granulated blast furnace slag (GBFS).



GGBFS is typically used in activation of granular pavement materials and as a cementitious material in the manufacture of concrete, particularly where resistance to aggressive ground, water and aggressive environmental conditions are present.







Applications

Activator for stabilising granular pavement materials as the only stabilising agent or in conjunction with small quantities of lime.
As a general cementitious replacement 25 – 50% for Portland Cement in concrete construction.
As a significant cementitious replacement min 65% for Portland Cement where long term durability in aggressive ground, water or air environments are required.
As a high cementitious replacement > 80% in special grout mixes.




Origins












CHTS-01 China Origin GGBFS



Product & Specs



Density: Min 2.8 g/cm3
Fineness-Blaine:
Min 400 ㎡/kg
Activity index, at
7days: Min 70%
28days: Min 95%
Mobility Ratio:
Min.95%
Initial Setting Time Ratio: Max 200 %
Moisture: Max 1%
Sulphate (SO3): Max 4%
Chloride lon Content(Cl-): Max 0.06%
Loss on Ignition: Max 1%
Insoluble: Max 3%
Content of glass:
Min 85%






Delivery & Logistics



Terms of delivery
- FOB Bayuquan Port, China
- CFR/CIF to Any Safe World Port

Port(s) of loading
Bayuquan Port, China (Draft 15.5m, Loading rate 15000MT PWWD SSHINC)

Packaging options
In loose bulk and in jumbo bags









INSU-01 India Origin GGBFS



Product & Specs



Specific gravity 2.86 +/- 0.04
Bulk Density 900 - 1100 kg/m3
Fineness (Surface Area) by Blain: 380 - 410 ㎡/kg
Activity index, at
7days: 70 % to 95%
28days: 80 % to 110%
Setting Time Ratio (initial minutes): 170 – 200
Moisture: < 0.5%
Sulphur trioxide (SO3): < 1.5%
Chloride lon Content(Cl): < 0.05%
Loss on Ignition: < 2%
Insoluble Residue: < 2.5%
Content of glass:
94 to 97%





Delivery & Logistics



Terms of delivery
- FOB Mundra Port, India
- CFR/CIF to Any Safe World Port

Port(s) of loading
Mundra Port, India

Packaging options
In loose bulk and in jumbo bags









INTA-01 India Origin GGBFS



Product & Specs (actual)



Specific gravity 2.86
Fineness: 393 ㎡/kg
Activity index, at
7days: 90.30%
28days: 116.50%
Setting Time Ratio (initial minutes):
Moisture: 0.012%
Sulphate (SO3): 0.26%
Chloride Content(Cl): 0.002%
Loss on Ignition: 0.46%
Insoluble Residue: 0.17%
Glass coontent:
97.65%





Delivery & Logistics



Terms of delivery
- FOB Paradip Port, India
- CFR/CIF to Any Safe World Port

Port(s) of loading
Paradip Port, India

Packaging options
In loose bulk and in jumbo bags









INCE-01 Indian Origin GGBFS



Product & Specs



Specific Gravity 2.79 (gm/cc)
Moisture: 0.012%
Sulphate (SO3): 0.091%
Chloride Content(Cl): 0.084%
Loss on Ignition: 0.85%
Insoluble Residue: 0.40%
Glass Content: 87-92%
Bulk Density:
1.03 (gm/cc)





Delivery & Logistics



Terms of delivery
- FOB Mundra Port, India
- CFR/CIF to Any Safe World Port

Port(s) of loading
Mundra Port, India


Packaging options
In loose bulk and in jumbo bags






Packaging Options


Bulk in 1.5MT-2MT Jumbo Bags
(Dry Bulk and Containerized Cargoes)

Loose bulk
(Dry Bulk Cargoes)
